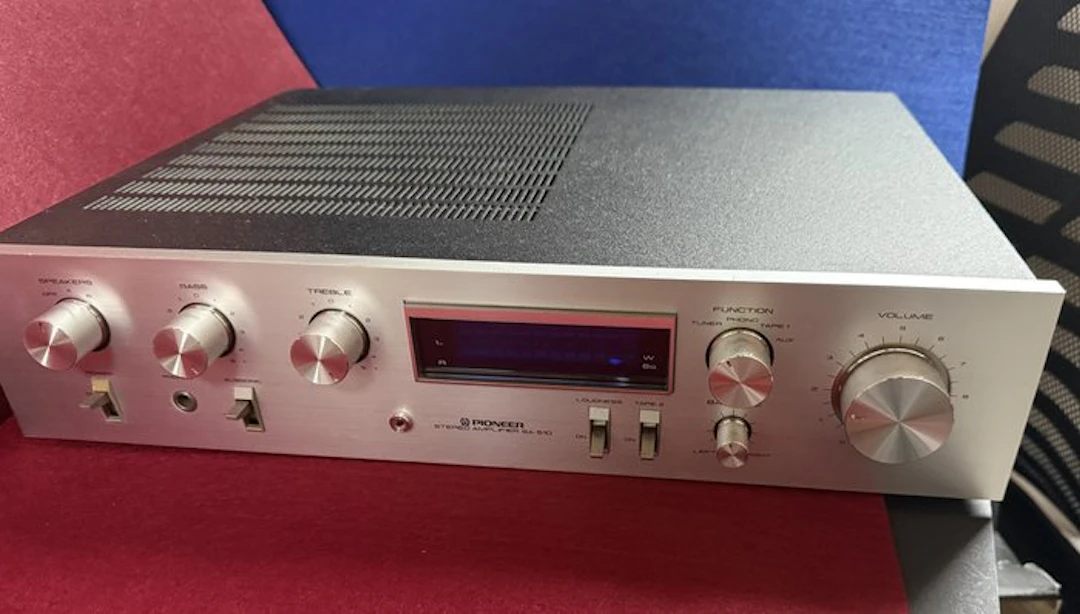

Pioneer - SA-510 Solid state integrated amplifier

Pioneer SA-510 Amplifier Integrated stereo amplifier produced between 1980 and 1981. It represents one of the entry-level models of the famous "Communication Series" / "Blue Line" by Pioneer, characterized by the transition to the 1980s hi-fi design with a blue glow fluorescent display (VFD). Main features and description Design and front panel: Brushed aluminum front with robust metal knobs and levers. The distinctive visual element is the blue/azure fluorescent display/VU-meter (Fluoroscan) that indicates the output power in Watts per channel into 8 ohms. Output power: 33 Watts per channel RMS into 8 Ω. Total harmonic distortion (THD): 0.03% (very low for its class). Signal-to-noise ratio: 68 dB for the Phono (MM) input and 85 dB for the line-level inputs (Tuner, Aux, Tape). Connectivity: Dedicated Phono MM input. Line inputs: Tuner, Aux, Tape 1 and Tape 2 (with recording monitor function). Outputs for two pairs of loudspeakers (Speaker A / B). Tone controls: Discrete stepped bass and treble knobs, balance, Loudness filter to emphasize bass and treble at low volume.

Estimación:€190
