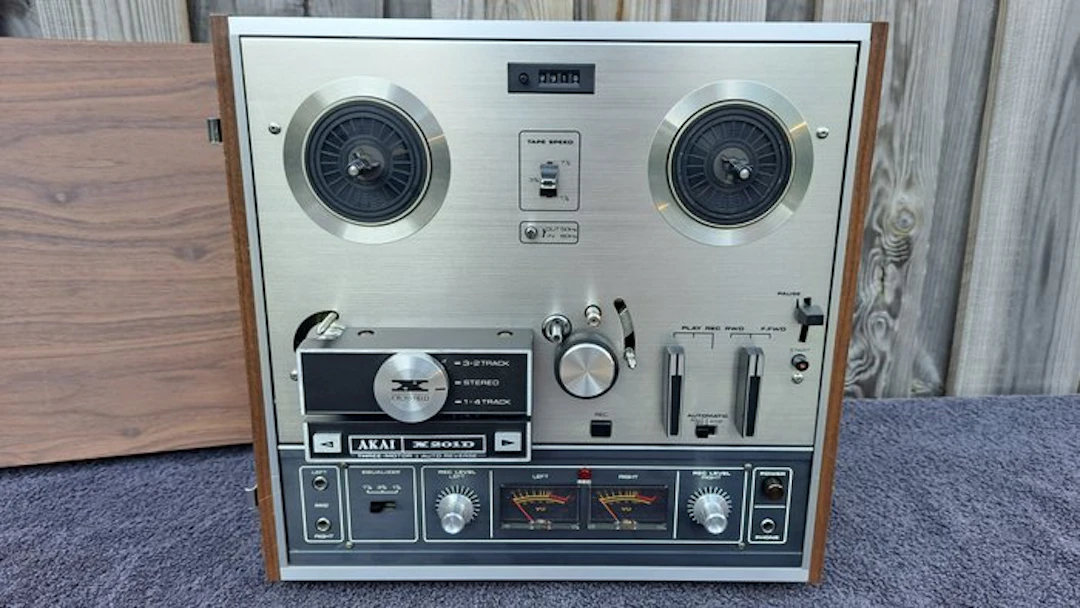

Akai - X-201D / 3-Motor

ice Akai X-201D tape recorder Complete with lid. Works perfectly, fast forward, play, record, auto-reverse and auto-stop all work as well. The lid is also included. See the photos for the condition of the lot. Look closely at the photos before you place a bid. They show the condition of the item. With conventional recorders, the signal and the bias are connected to the same recording head. Therefore the recorded frequencies, especially high-frequency signals, are often attenuated or erased by the effect of the bias field. With the exclusive Akai Cross-Field Head, however, the signal and bias heads are mounted separately facing each other, with their centers slightly offset. Because the recorded signal remains completely unaffected by the bias field, tape can be recorded over the full frequency spectrum with maximum fidelity, even at low tape speeds. The two reels are NOT included; they only illustrate the operation. Specifications: Track system: 4-track, 2-channel, stereo/mono system Heads: 1 x record/play, 1 x erase, 1 x bias Motor: 2 x capstan drive, 1 x pinch roller Tape reel size: up to 7 inch reels Tape speeds: 1 7/8, 3 3/4, 7 1/2 ips Wow and flutter: 0.08% (7 1/2 ips) Frequency range: 30 Hz to 26 kHz (7 1/2 ips) Signal-to-noise ratio: 50 dB Total harmonic distortion: 3% Crosstalk: 45 dB Input: 50 mV (line), 5 mV (DIN), 0.5 mV (microphone) Output: 1.23 V (line), 0.4 V (DIN) Semiconductors: 16 x transistors, 17 x diodes Dimensions: 358 x 358 x 227 mm Weight: 17 kg Carefully packed and shipped.

Estimación:€400
